Create and manage application risk factors

Learn how to enable application risk scoring in Polaris, and manage your organization's risk factors.

Overview

Application risk scoring allows you to qualify the significance of applications in your portfolio with risk factors you define.

After you enable application risk scoring, Polaris assigns a composite score (ranging between 0–100) to each application in your Portfolio. Higher risk scores indicate an application's vulnerabilities pose a larger threat to your organization. Each application's risk score is a function of:

  • The quantity of DAST, SAST, and SCA issues detected in the application's projects (default branches only).
  • The risk factor categories assigned to the application.
  • The significance (or weight) of different risk factors in your organization.

Risk factors

Each risk factor is a collection of categories, and each category is assigned an impact value. Impact values range between -5 and 5, where:

  • A negative impact value will lower an application's risk score.
  • An impact value of 0 (a neutral impact value) won't change an application's risk score.
  • A positive impact value will raise an application's risk score.
Note: Each risk factor has a default category. The default category is assigned to all of the applications in your portfolio when risk scoring is enabled, and is selected by default when you create new applications. The default category can have a negative, neutral, or positive impact score.

A weight is assigned to each risk factor to control the significance of different risk factors in your organization. This allows you to make certain risk factors more or less effective on application risk scores.

Base issue risk scores

While only neutral categories (risk factor categories with an impact value of 0) are assigned to an application, its risk score is only derived from the issues captured in its projects, and calculated using base issue risk scores. The base issue risk scores of DAST and SAST issues correspond with severity.

Table 1. DAST and SAST issues, base issue risk scores per severity
Issue severity Base issue risk score
Critical 95
High 80
Medium 50
Low 20
Info 0

SCA base issue risk scores are calculated by multiplying the issue's Vulnerability: Overall Score (found on the Issue Details tab) by 10.

Note: Issues with a base issue risk score below 20 (including informational severity issues) are ignored, and do not affect risk scores.

Calculating application risk scores

To calculate the risk score of an application, Polaris uses:

  • Base issue risk scores of DAST, SAST, and SCA issues detected in the application's projects (default branches only)
  • The risk factor categories (and impact values) assigned to each application
  • The weight assigned to each risk factor in your organization

A detailed summary of the calculation logic is included at the end of this page. See Example calculation logic for more information.

Enable application risk scoring

To enable application risk scoring, follow these steps:

Note: Only Organization Administrators can complete these steps.
  1. Go to My Organization > Risk Scoring.
  2. Select Enable risk scoring for all applications.

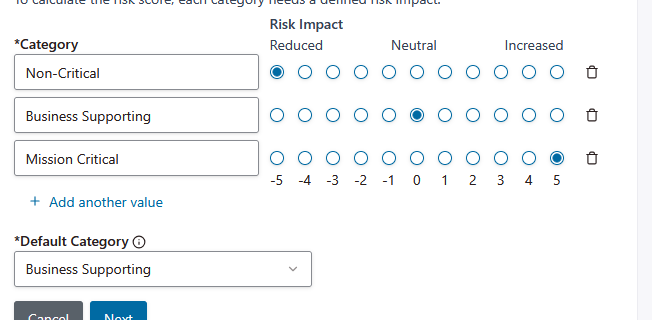

    When you enable risk scoring, Polaris creates a default risk factor, Business Criticality, that includes the following categories:
    Category Risk impact
    Non-Critical -5
    Business Supporting (default) 0
    Mission Critical 5
  3. (Optional) Create or modify risk factors, as required.
  4. Select Save changes.

Create a risk factor

To create a risk factor, follow these steps:

Note: Only Organization Administrators can complete these steps. You can create up to 100 risk factors.
  1. Go to My Organization > Risk Scoring.
  2. Select Create risk factor.
  3. (Optional) Enter a Name for the risk factor.
    Risk factor names can be up to 256 characters long, and can include spaces and special characters.
  4. (Optional) Update the risk factor's Description.
    Descriptions can be up to 2048 characters long.
  5. (Optional) Update the risk factor's categories:
    Each risk factor must include one or more categories. Category names can be up to 256 characters with special characters.
    • To add a new category, select Add another value, enter a category name, and select the category's Risk Impact.
    • Select the delete icon to remove a category.
    • Use the radio buttons to adjust the risk impact of different categories.
      Note: A risk impact of -5 (left) reduces risk scores. A risk impact of 0 (center) doesn't affect risk scores. A risk impact of 5 (right) increases risk scores.
  6. Select the risk factor's Default Category.
    Note: Once saved, the risk factor's default category is assigned to all the applications in your Portfolio.
  7. Select Next.
  8. Adjust values in the Weight column, so the sum of all weights is equal to 100.
  9. Select Confirm.
  10. Select Save Changes.

Delete a risk factor

To delete a risk factor, follow these steps:

Note: Only Organization Administrators can complete these steps.
  1. Go to My Organization > Risk Scoring.
  2. Select the options icon next to the factor you wish to delete, and select Delete.
    A confirmation appears.
  3. Select OK.
    The Edit Risk Factor Weights window appears.
  4. Adjust values in the Weight column, so the sum of all weights is equal to 100.
  5. Select Save.
  6. Select Save changes.

Change an application's risk factors

To change the risk factor categories assigned to an application, follow these steps:

Note: Only Organization Administrators, Organization Application Managers, and other users with permissions to manage application settings can complete these steps.
  1. Go to Portfolio and select the application you wish to modify.
  2. Go to Settings.
    Find the application's risk factors under General > Risk Factors.
  3. Customize the application's risk factors, as required.
  4. Select Save.

Example calculation logic

The following example risk factors will be used to demonstrate the calculation logic.

Table 2. Example risk factors
Risk factor (risk factor weight) Category Impact
Asset Criticality (80%) Non-critical -5
Business Supporting 0
Mission Critical 5
Accessibility (20%) Isolated Network -5
Local only 0
Internal connected network 3
Internet-facing 5

The following vulnerabilities will be used to demonstrate the calculation logic:

Table 3. Example application and vulnerabilities
Application Project Issue Base issue score
Example application Example SAST & SCA project Critical severity SCA issue 9.8 (98)
Medium severity SCA issue 5.5 (55)
Critical severity SAST issue 95
Medium severity SAST issue 50
Example DAST project High severity DAST issue 80
Informational severity DAST issue 0

Part 1: Calculate the application's risk factor multiplier

Polaris uses the categories (and impact factors) assigned to the application to calculate the application's risk factor multiplier. In this example, three scenarios are considered to demonstrate how different categories affect the application's risk score.

Note: The application's risk factor multiplier can raise or lower the application's risk score by 50%; however, the maximum adjusted risk score for an application is 100. If an adjusted application risk score is above 100, its score is reduced to 100 automatically.

The risk factor multiplier is calculated using the following formula: ({weighted average impact value} ÷ 10) + 1.

Table 4. Example risk factor multiplier calculation
Scenario Risk factor Risk factor weight Category Category impact Weighted impact value
1 Asset Criticality 80% Business Supporting 0 0 × 0.8 = 0
Accessibility 20% Local only 0 0 × 0.2 = 0
2 Asset Criticality 80% Mission Critical 5 5 × 0.8 = 4
Accessibility 20% Internet-facing 5 5 × 0.2 = 1
3 Asset Criticality 80% Non-critical -5 -5 × 0.8 = -4
Accessibility 20% Internal connected network 3 3 × 0.2 = 0.6

The weighted average impact value is calculated by dividing the sum of weighted impact values by the sum of weights:

  • Scenario 1 weighted average impact value: 0 ÷ 1 = 0
  • Scenario 2 weighted average impact value: 5 ÷ 1 = 5
  • Scenario 3 weighted average impact value: -3.4 ÷ 1 = -3.4

The weighted average impact value is then used to calculate the application's risk factor multiplier.

  • Scenario 1 application risk factor multiplier: (0 ÷ 10) + 1 = 1
  • Scenario 2 application risk factor multiplier: (5 ÷ 10) + 1 = 1.5
  • Scenario 3 application risk factor multiplier: (-3.4 ÷ 10) + 1 = 0.66

Part 2: Calculate the application's risk score

To calculate the application's risk score, the application's risk factor multiplier is applied to base issue risk scores (for all DAST, SAST, and SCA issues captured in default branches in all of the application's projects). Then, the adjusted issue risk scores are used to calculate the application's risk score — a weighted average calculated using the adjusted issue risk scores and their weights. Issues with higher adjusted risk scores are more significant. The weights assigned to different issue risk scores are listed below:

Table 5. Issue score weights
Issue risk score Weight
95 or higher 50%
80–94 30%
50–79 15%
20–49 5%
0–19 0%

Applying these weights to the issues in this example, the application's issue risk score is calculated:

Important: The weight used to calculate an issue's weighted score can change in accordance with its adjusted risk score. Additionally, adjusted base issue risk scores that are larger than 100 are reduced to 100 for this calculation.
Table 6. Example calculation, adjusted issue risk score (scenario 1)
Issue Adjusted base issue score Weight Weighted scores
Critical severity SCA issue 98 × 1 = 98 50% 98 × 0.5 = 49
Medium severity SCA issue 55 × 1 = 55 15% 55 × 0.15 = 8.25
Critical severity SAST issue 95 × 1 = 95 50% 95 × 0.5 = 47.5
Medium severity SAST issue 50 × 1 = 50 15% 50 × 0.15 = 7.5
High severity DAST issue 80 × 1 = 80 30% 80 × 0.3 = 24
Informational severity issue 0 × 1 = 0 0% 0 × 0 = 0

The application's risk score is calculated by dividing the sum of weighted issue scores (136.25) by the sum of weights (1.6): 136.25 ÷ 1.6 = 85.15. In scenario 1, rounded to the nearest whole, the application's issue risk score is 85.

Tip: While only neutral categories (risk factor categories with an impact value of 0) are assigned to the application, its risk score is calculated using base issue scores.
Table 7. Example calculation, adjusted issue risk score (scenario 2)
Issue Adjusted base issue score Weight Weighted scores
Critical severity SCA issue 98 × 1.5 = 147 (reduced to 100) 50% 100 × 0.5 = 50
Medium severity SCA issue 55 × 1.5 = 82.5 15% → 30% 82.5 × 0.3 = 24.75
Critical severity SAST issue 95 × 1.5 = 142.5 (reduced to 100) 50% 100 × 0.5 = 50
Medium severity SAST issue 50 × 1.5 = 75 15% 75 × 0.15 = 11.25
High severity DAST issue 80 × 1.5 = 120 (reduced to 100) 30 → 50% 100 × 0.5 = 50
Informational severity issue 0 × 1.5 = 0 0% 0 × 0 = 0

The application's adjusted risk score is calculated by dividing the sum of weighted issue scores (186) by the sum of weights (1.95): 186 ÷ 1.95 = 95.38. In scenario 2, rounded to the nearest whole, the application's issue risk score is 95.

Table 8. Example calculation, adjusted issue risk score (scenario 3)
Issue Adjusted base issue score Weight Weighted scores
Critical severity SCA issue 98 × 0.66 = 64.68 50% → 15% 64.68 × 0.15 = 9.70
Medium severity SCA issue 55 × 0.66 = 36.30 15% → 5% 36.30 × 0.05 = 1.81
Critical severity SAST issue 95 × 0.66 = 62.70 50% → 15% 62.70 × 0.15 = 9.40
Medium severity SAST issue 50 × 0.66 = 33 15% → 5% 33 × 0.05 = 1.65
High severity DAST issue 80 × 0.66 = 52.8 30% → 15% 52.8 × 0.15 = 7.92
Informational severity issue 0 × 0.66 = 0 0% 0 × 0 = 0

The application's adjusted risk score is calculated by dividing the sum of weighted issue scores (30.48) by the sum of weights (0.55): 30.48 ÷ 0.55 = 55.41. In scenario 3, rounded to the nearest whole, the application's issue risk score is 55.
